PRODUCT ID: 521
Door Bottoms, Automatic Door Bottom, Hospitality Line, Automatic Door Bottoms
Available Inserts: Neoprene

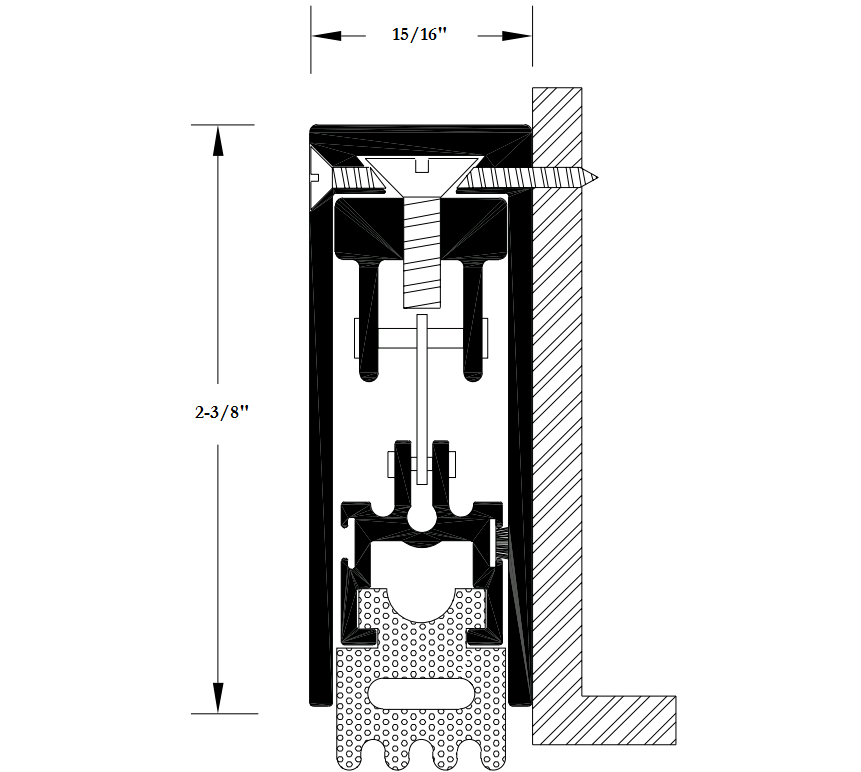

15/16" x 2-3/8"
Available order lengths: 12" to 96"
Maximum drop: 3/4"
Onsite size adjustments:
18" to 24" cannot be trimmed.
36", 42", and 48" can be trimmed up to 3".
Other sizes can be trimmed up 1".
Ratings
FIRE RATED – UL10B FIRE TESTED.
POSITIVE PRESSURE – CATEGORY J LISTED, UL10C POSITIVE PRESSURE TEST.
SOUND TEST – ASTM STANDARD E90-75.
AIR INFILTRATION TEST – E283-73 AND SDI 116 AIR.
AVAILABLE COLORS
-

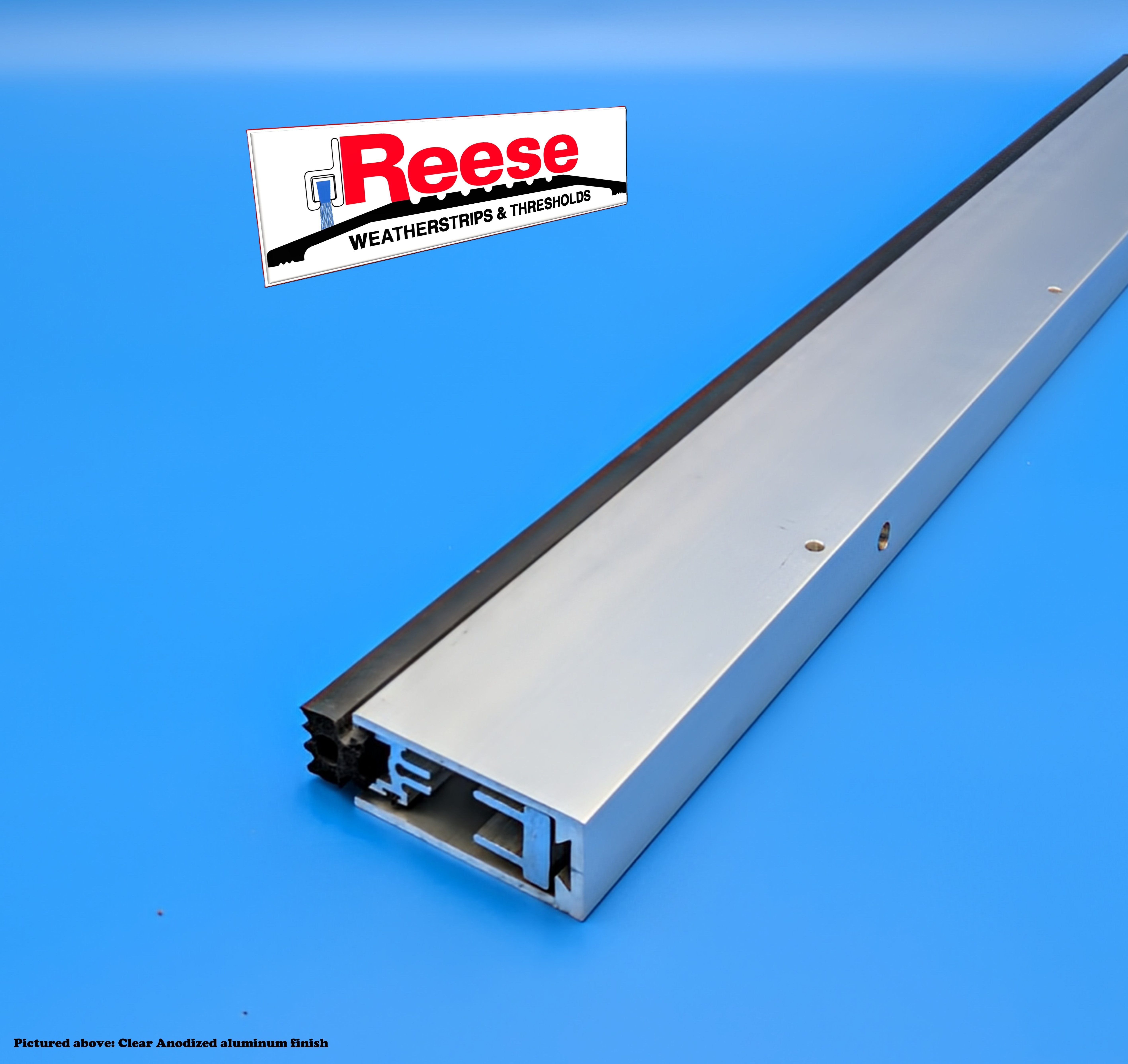

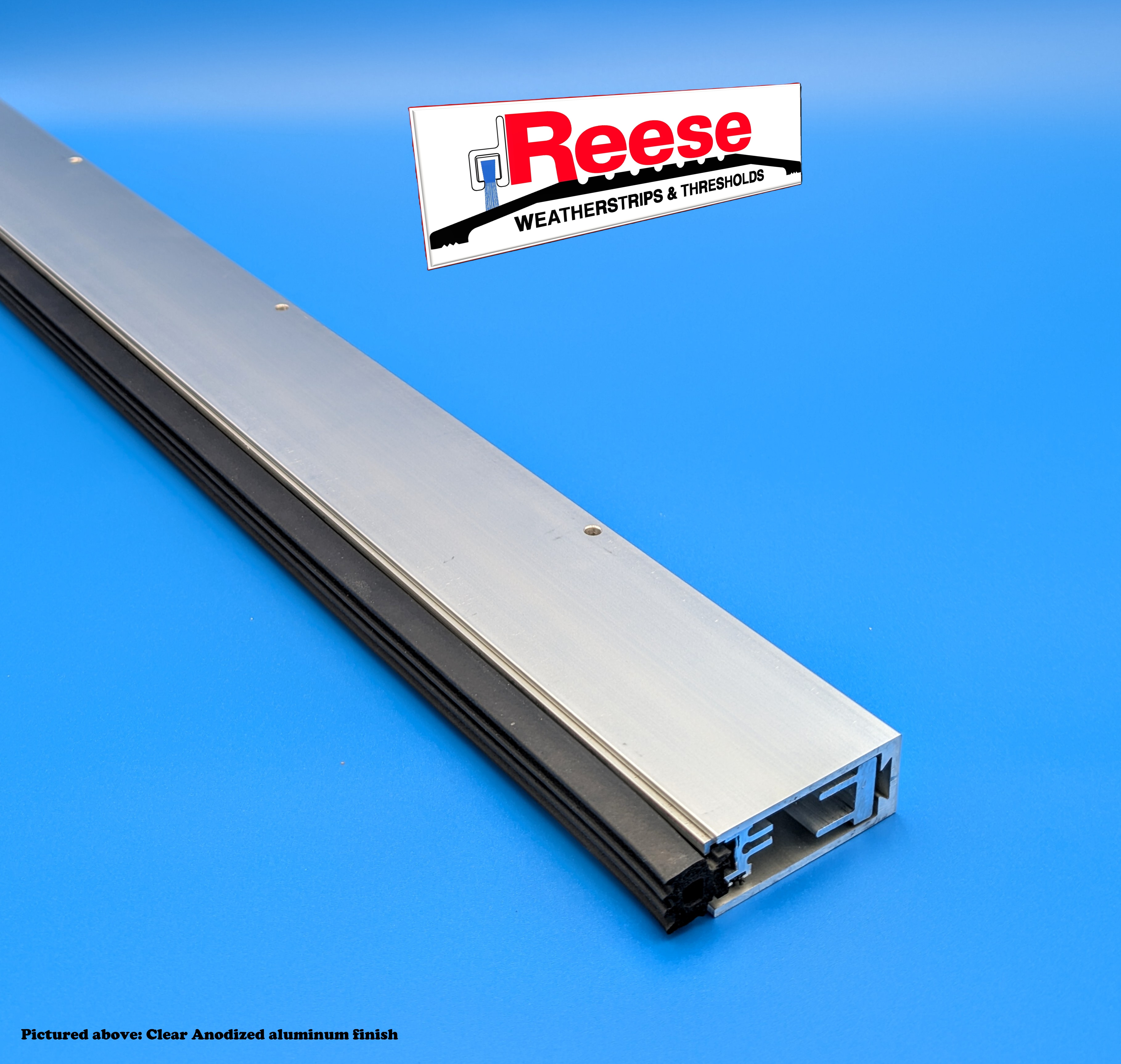

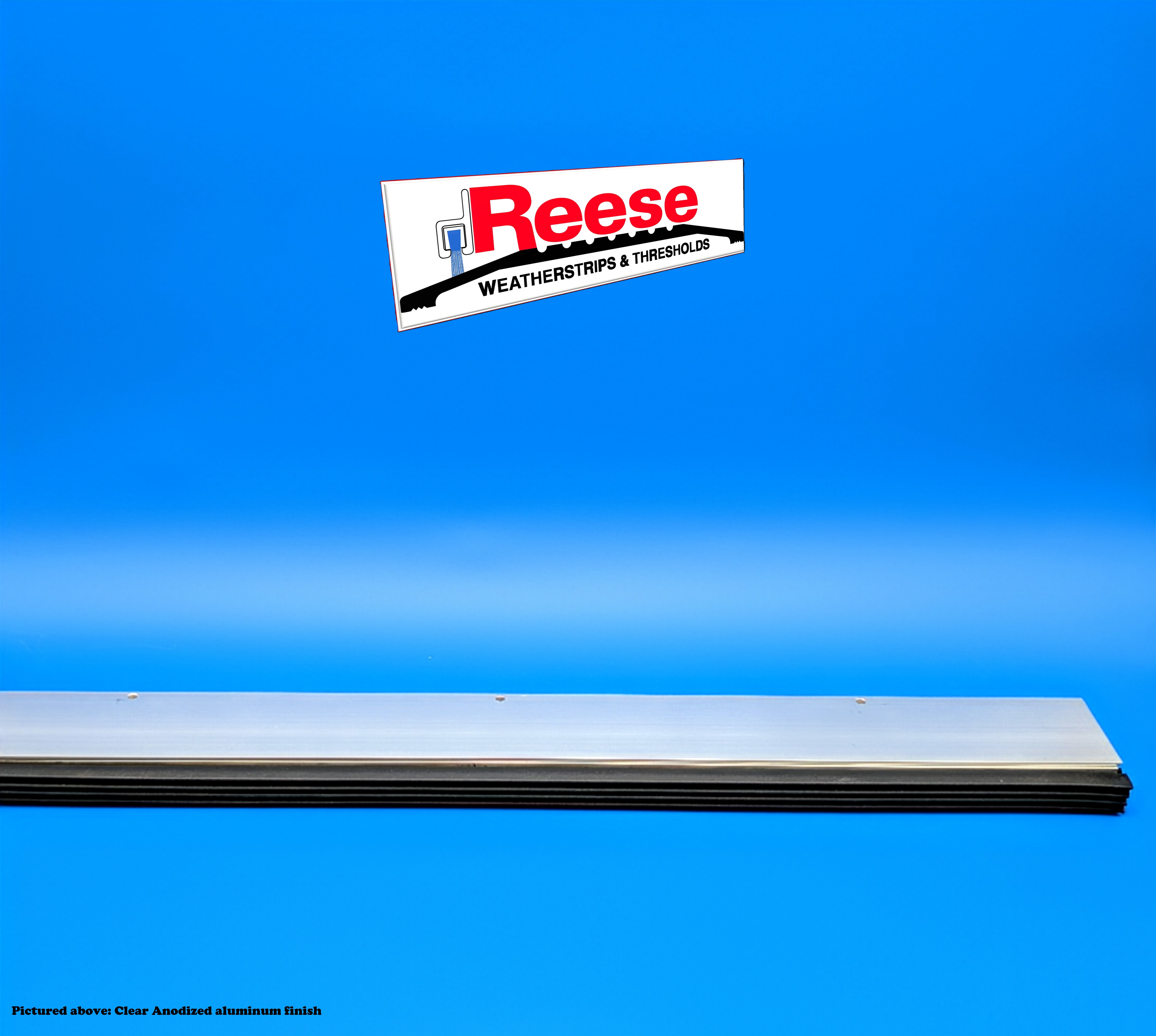

Clear Anodized
-
Dark Bronze Anodized
-
Gold Anodized
